Poulan Roper & Sears Lawn Mower Replacement Spindle Assembly
Scroll down for bearings, spindle shafts, pulleys, etc
Attention Poulan & Husqvarna owners
Most Poulan & Husqvarna part numbers are simply AYP numbers to which they added
531 or 532 in front. For example part number 532 14 65 27 is the same as 146527
Replaces
Sears #

Description
Order
173984, 138776, 157722, 532
17 39-84,
532 13 87-76,
532 15 77-22,
532173984
Self Tapping Bolts
5/16 x 1-1/4"
Self Tapping Bolt 02-304
1.99
17490612
1700612
Self Tapping Bolts
3/8 x 1"
Self Tapping Bolt 02-301
1.99
130794, 130797
180074, 183170
532130794
532110158
539110158
Star blade mount Includes pulley nut,
blade nut and washer, mounting
bolts and washers
Overall Height: 6-3/4" Housing Height
5-1/2"
3 bolt pattern 4-3/4" apart
Splined shaft on top for pulley
Use: 45-257 top bearing, 45-259
lower bearing
85-017 shaft, 44-370 pulley
130794 Spindle Assy
39.99
128774
532128774
Same as above but
housing only
Housing replaces 128774 (130794)
34.99
143651
Use with star center hole blades
Includes shaft, bearings, top nut and
blade bolt
Overall Height: 5"
Housing Height 3-1/2"
3 hole bolt pattern 4-7/8" apart
Use: 45-257 top bearing, 45-259
lower bearing
85-023 shaft, 44-370, 44-371 pulley
Spindle 143651
59.99
137152
Same as above but Housing only
Housing 137152 82-221
33.99
174356
Use with star center hole blades
Includes shaft and bearings
Overall Height 5-3/4"
Housing Height 3-3/4"
4 hole bolt pattern 4" apart
Base 4-7/8" x 4-7/8" wide
Use: 45-257 top bearing, 45-259
lower bearing
85-040 shaft
Spindle 174356 82-015
69.99
187281
187291
187292
192870
Use with star center hole blades
Includes shaft and bearings
Overall Height 7-1/2"
Housing Height 5-1/2"
4 hole bolt pattern 4" apart
Base 4-3/4" x 4-3/4" wide
Use: 45-257 top bearing, 45-259
lower bearing
85-032 shaft

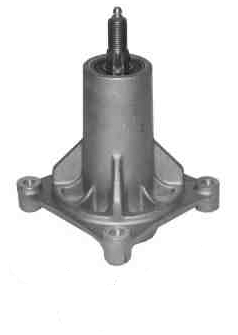

Spindle 187292 82-026
44.99
187281
532187281
Same as above but
housing only
187281 (187292) Spindle Housing
29.99
174358
Housing 48"
174358 HOUSING
55.99
174360
85-032
Spindle Shaft
174360 SHAFT
59.99
106040, 106040X
106041, 106041X
121704, 121704X
121705, 121705X
532121705, 532106041,
532121704
Top Pulley Dia: 4-7/8"
Bottom Pulley Dia: 4-1/4"
Distance between pulleys: 2"
Height: 6-3/8"
Blade Saddle: 2-1/4"
Base Dia: 5"
4 hole bolt pattern 2-3/4" apart
Use: 45-257 top and lower
bearings
Spindle 121705 82-495
129.99
101477
100699, 100699X
677A233, 677A14
105891, 121687
P121687X  532121676
121687XMS  121687XCS
121687X  121687
121676X  109685X
105722X  104926X
100699X POULAN
532-121687 ROPER
121687
Sears 105891, 121676
Pulley Dia: 5-1/2"
Overall Height 6-7/8"
Blade Saddle: 2 1/2"
Square base: 4-1/2 x 4-1/2"
4 hole bolt pattern 2-3/4" apart
Made with brake lip on pulley
Use: 45-257 top and lower
bearings
Spindle 101477
89.99
105477, 105477X
106038, 106038X
121617, 121617X
121657, 121657X
Center spindle on 50"cut
Top Pulley Dia: 5-1/4"
Lower Pulley Dia: 4-1/4"
Overall Height: 5-1/2"
Blade Saddle: 2 1/4"
8 sides base 4-1/2" Dia
4 hole bolt pattern 2-13/16" apart
Use: 45-257 top and lower
bearings
Spindle 121657 82-679
99.99
105483, 105483X
106037, 106037X
121622, 121622X
121658
121658, 121658X
136818
136819
Center and left spindle on 44" cut
Outer spindle on 50" cut - 20 HP
Pulley Dia: 4-3/8"
Overall Height: 3-3/4"
Blade Saddle: 2-1/4"
6 sides base 4-1/2" Dia
4 hole bolt pattern 2-13/16" apart
Use: 45-257 top and lower
bearings
Spindle 136819 82-680
109.99
124207, 124208
124207X, 124208X
532124207, 532124208

124208x Spindle === NLA ===
129729
139729
137266
Use on spindles
# 130794, 143651, 174356, 187292
Nut AYP 129729 04-001
5.99
137553
85-023
Star blade mount
OD: 3/4"
Length: 4-7/8"
Shaft 137553 85-023
32.99
137645
137646
85-017
Star blade mount
OD: 3/4",
Length: 7"
Shaft AYP 137646
24.99
85-040
Spindle shaft includes bearings
fits star hole blade
12 tooth spline top end with 9/16"
threads
5-1/2" long
Shaft AYP 85-040
34.99
187291
85-041
Spindle shaft includes bearings
fits star hole blade
12 tooth spline top with 9/16" threads
7-1/4" long
Shaft AYP 85-041 === NLA ===
165482
85-034

Shaft 165482 / 85-034
39.99
137553
85-023

Shaft 137553 85-023
32.99
192872
85-033
Spindle shaft includes lower bearing
fits star hole blade
Shaft  Length: 5-3/4"
OD of Shaft: 3/8"
•OD of Bearing: 1-7/8"
Shaft 192872 / 85-033(NLA)
39.99
110485
110485X
45-257
Oregon 45-257
Top bearing for Oregon
82-014, 82-510, 82-015 and 82-026
OD: 1-9/16"
ID: 11/16"
741-0600 Bearing
12.99
129895
45-259
Oregon 45-259
Lower bearing for Oregon
82-014, 82-510, 82-015 and 82-026
OD: 1-27/32" (almost 1-7/8")
ID: 3/4"
45-259 Bearing 741-0919
12.99
153535
173436
129861
177865
44-370
Spindle pulley
OD: 5"
ID: 5/8" spline
Pulley 173436, 129861
22.99
153532
173435
129206
44-371
OD: 4-1/2"
ID: 5/8" splined
Pulley 44-371 153532
19.99
173434,
129207,
153531
ID:  5/8"
OD:  4-5/8"
WIDTH:  7/8"
173434 Spindle Pulley
29.99
197473
195945
Pulley Mandrel
197473, 195945 PULLEY
19.99
14059
Mandrel Cover for 46" deck
Mandrel Cover 14059 ===NLA===
180806
174343
Mandrel Cover for 48" deck
180806 COVER
26.99
155986X431
155986
Deck Adjusting Bar
155986X431 Sears Deck Adjusting Bar
22.99
4898h
134249
432124842
Shoulder Bolt 1-7/8"
Universal Shoulder Bolt
2.50
194208
Pin 5/16
194208 Bow Tie Cotter Pin
7.74
194209
Pin 7/16
194209 Bow Tie Cotter Pin
7.74
6266h
76671
Washer T
6266H WASHER
12.26
194321

Spacer Retainer
194321 SPACER
12.18
169699X428
169699
Grass Deflector
Grass Deflector NLA, 169699
169699X498
169699X418
Grass Deflector
Grass Deflector NLA, 169699x418
