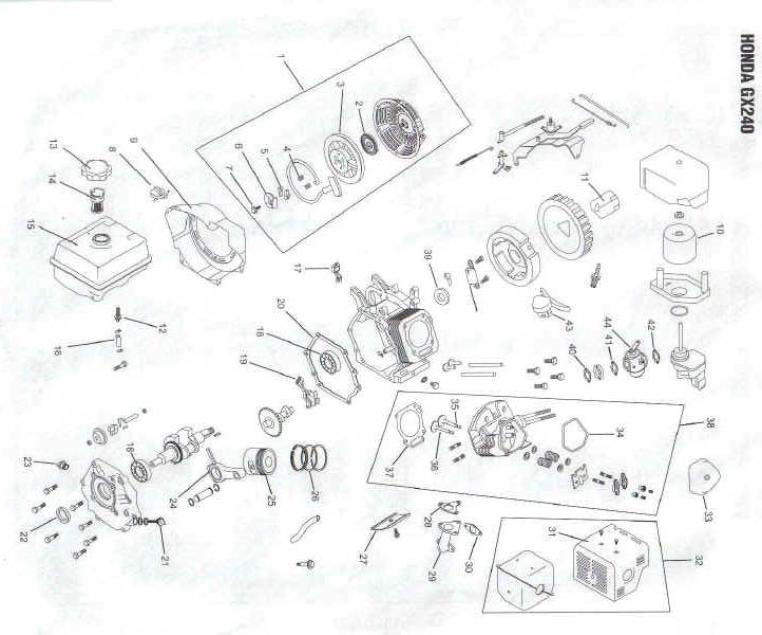

Honda GX240 parts diagram
This section is under construction
Please check again soon as parts are being added on a regular basis.
Reference # in diagram
Replaces Honda #
Order
1

REF-1 HONDA RECOIL 31-049
$74.99
2
Starter Spring 28442-ZE2-W01
REF-2 HONDA STARTER SPRING
$14.99

4
Starter Pawl Spring 28443-ZE2-W01
REF-4 HONDA STARTER PAWL SPRING
$6.99
5
Starter Pawl 28442-ZE2-W01
REF-5 HONDA STARTER PAWL
$5.99


8
Switch 28442-ZE2-W01
REF-8 HONDA SWITCH ON-OFF
$12.99

10
Air Filter 17210-ZE2-505
REF-10 /HONDA AIR FILTER
$24.99

REF-11 HONDA STARTER CUP W/SCREEN
$46.99
12
Fuel Tank Joint 16955-ZE1-000
REF-12 HONDA FUEL TANK JOINT
$10.99
13
Fuel Cap 17620-ZH7-023
REF-13 HONDA FUEL CAP
$14.99
14
Fuel Strainer 17672-ZE2-W01
REF-14 HONDA FUEL STRAINER

REF-15 HONDA FUEL TANK ===NLA===
16
Fuel Line 95001-45300-40S


REF-17 HONDA DIODE ASSY
$21.99

19
Oil Level Switch 15510-ZE2-033
REF-19 HONDA OIL LEVEL SWITCH
$14.99

REF-20 HONDA GASKET, SUMP COVER
$13.99
21
Oil Cap and Indicator 15600-ZG4-003
REF-21 HONDA OIL CAP & INDICATOR
$8.99
22
Oil Seal PTO End 91201-890-003
REF-22 HONDA OIL SEAL PTO
$4.99
23
Oil Cap 15600-ZG4-003
